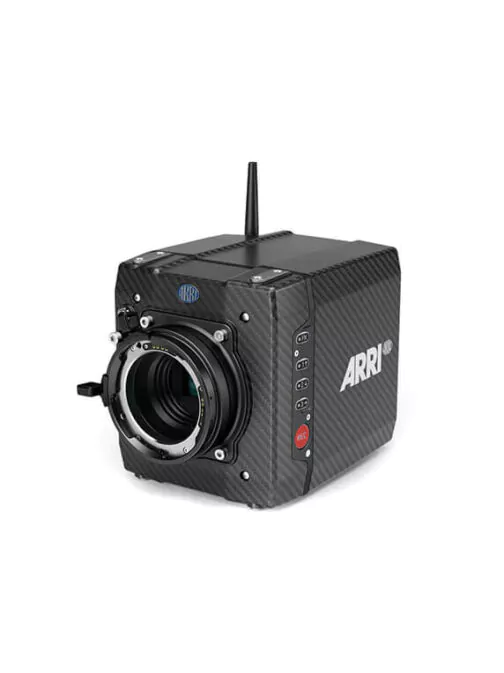

ARRI – ALEXA MINI

550,00€ HT/jour

ARRI – ALEXA MINI

Louée avec :

• 1 viseur ARRI ALEXA MINI + EVF bracket
• 1 monture EF ou PL
• 4 cartes 256Go CFast 2.0
• 1 lecteur de cartes CFast
• 4 batteries V-mount 153Wh + double chargeur
• 1 monture V Bebop
• 1 cage
• 1 poignée
• 1 plaque de décentrement
• 1 semelle + tiges 15mm
• 1 alimentation secteur

• 1 follow focus Redrock v2

• Licence ARRIRAW
• Licence 4/3



1 en stock

Effacer les dates

Description

Compact, léger et autonome – ARRI ALEXA Mini est le petit appareil polyvalent de la famille des caméras ARRI.

La conception symétrique permet de filmer dans n’importe quelle orientation, y compris à l’envers et en mode portrait, tandis que plusieurs points d’accessoires permettent des solutions de montage très créatives. De plus, ALEXA Mini est livré avec une série de montures d’objectif interchangeables, permettant l’utilisation de vidéo B4, d’objectifs fixes à monture EF, ou même avec les ARRI Signature Primes avec la monture LPL pour ALEXA Mini.

Technical Data
Model
ALEXA Mini
Sensor Type
Super 35 format ARRI ALEV III CMOS sensor with Bayer pattern color filter array
Sensor Maximum Number of Photosites and Size
3424 x 2202
28.25 x 18.17 mm / 1.112 x 0.715″
⌀ 33.59 mm / 1.322″
Sensor Frame Rates
0.75 – 200 fps
Weight
∼2.3 kg / ∼5 lbs
(camera body with titanium PL lens mount)
Photosite Pitch
8.25 μm
Sensor Active Image Area (photosites)
S16 HD: 1600 x 900
HD: 2880 x 1620
2K: 2868 x 1612
3.2K: 3200 x 1800
4K UHD: 3200 x 1800
4:3 2.8K: 2880 x 2160
2.39:1 2K Ana.: 2560 x 2145
HD Ana.: 1920 x 2160
ARRIRAW 16:9 2.8K: 2880 x 1620
Open Gate 3.4K: 3424 x 2202
Sensor Active Image Area (dimensions)
S16 HD: 13.20 x 7.43 mm / 0.520 x 0.292″
HD: 23.76 x 13.37 mm / 0.935 x 0.526″
2K: 23.66 x 13.30 mm / 0.932 x 0.524″
3.2K: 26.40 x 14.85 mm / 1.039 x 0.585″
4K UHD: 26.40 x 14.85 mm / 1.039 x 0.585″
4:3 2.8K: 23.76 x 17.82 mm / 0.935 x 0.702″
2.39:1 2K Ana.: 21.12 x 17.70 mm / 0.831 x 0.697″
HD Ana.: 15.84 x 17.82 mm / 0.624 x 0.702″
ARRIRAW 16:9 2.8K: 23.76 x 13.37 mm / 0.935 x 0.526″
Open Gate 3.4K: 28.25 x 18.17 mm / 1.112 x 0.715″
Recording File Container Size (pixel)
S16 HD: 1920 x 1080
HD: 1920 x 1080
2K: 2048 x 1152
3.2K: 3200 x 1800
4K UHD: 3840 x 2160
4:3 2.8K: 2944 x 2160
2.39:1 2K Ana.: 2048 x 858
HD Ana.: 1920 x 1080
ARRIRAW 16:9 2.8K: 2880 x 1620
Open Gate 3.4K: 3424 x 2202
Recording File Image Content (pixel)
ProRes S16 HD: 1920 x 1080
ProRes HD: 1920 x 1080
ProRes 2K: 2048 x 1152
ProRes 3.2K: 3200 x 1800
ProRes 4K UHD: 3840 x 2160
ProRes 4:3 2.8K: 2880 x 2160
ProRes HD Anamorphic: 1920 x 1080
ProRes 2.39:1 2K Anamorphic: 2048 x 858
ARRIRAW 16:9 2.8K: 2880 x 1620
ARRIRAW Open Gate 3.4K: 3424 x 2202
ARRIRAW 4:3 2.8K (OG 3.4K): 3424 x 2202
ARRIRAW 2.39:1 2K Ana. (OG 3.4K): 3424 x 2202
ARRIRAW 16:9 HD Ana. (OG 3.4K): 3424 x 2202
Exposure Latitude
14+ stops over the entire sensitivity range from EI 160 to EI 3200 as measured with the ARRI Dynamic Range Test Chart (DRTC-1)
Exposure Index
Adjustable from EI 160-3200 in 1/3 stops
EI 800 base sensitivity
Shutter
Electronic shutter, 5.0°- 356° or 1s – 1/8000s
Recording Formats
ARRIRAW
Apple ProRes 4444 XQ
Apple ProRes 4444
Apple ProRes 422 HQ
Apple ProRes 422
Apple ProRes 422 LT
Recording Media
CFast 2.0 Cards
Recording Frame Rates
ProRes HD: 0.75 – 200 fps
ProRes S16 HD: 0.75 – 200 fps
ProRes 2K: 0.75 – 200 fps
ProRes 3.2K: 0.75 – 60 fps
ProRes UHD: 0.75 – 60 fps
ProRes 4:3 2.8K: 0.75 – 50 fps
ProRes 2:39:1 2K Ana.: 0.75 – 120 fps
ProRes HD Ana.: 0.75 – 120 fps
MFX/ARRIRAW 16:9 2.8K: 0.75 – 48 fps
MFX/ARRIRAW 3.4K Open Gate: 0.75 – 30 fps
Recording Modes
Standard real-time recording
Pre-recording
Intervalometer
Stop Motion
Viewfinder Type
Multi Viewfinder MVF-1 with 3,2″ flip-out monitor
Camera Control Panel (CCP-1) with option to daisy-chain MVF-1
Viewfinder Technology
OLED viewfinder display
LCD fold out monitor
Viewfinder Resolution (pixel)
1280 x 720
Viewfinder Diopter
Adjustable from -5 to +5 diopters
Color Output
Rec 709
Rec 2020
Log C
Custom Look (ARRI Look File ALF-2)
Look Control
Import of custom 3D LUT
ASC CDL parameters (slope, offset, power, saturation)
Knee, gamma, saturation, black gamma, saturation by hue
Support of ARRI Look Library
White Balance
Manual and auto white balance, adjustable from 2000K to 11000K in 10K steps
Color correction adjustable range from -16 to +16 CC
1 CC corresponds to 035 Kodak CC values or 1/8 Rosco values
Filters
Built-in motorized ND filters 0.6, 1.2, 2.1
Fixed optical low pass, UV, IR filter
Image Outputs
1x proprietary signal output for MVF-1 viewfinder
2x SDI Out: 1,5G (SMPTE ST292-1), 3G (SMPTE ST425-1, ST425-3), 6G & DL 6G (SMPTE ST2081-10, ST2081-11)
uncompressed video with embedded audio and metadata
Lens Squeeze Factors
1.00
1.30
2.00
Exposure and Focus Tools
False Color
Zebra
Zoom
Waveform
Aperture and Color Peaking
Audio Input
1x LEMO 5pin balanced stereo line in
(Line input max. level +24dBu correlating to 0dBFS)
Audio Output
SDI (embedded)
Audio Recording
2 channel linear PCM, 24 bit 48 kHz
Remote Control Options
Web-based remote control from phones, tablets and laptops via WiFi & Ethernet
Camera Access Protocol via Ethernet & WiFi
GPIO interface for integration with custom control interfaces
WCU-4 hand-unit with control over lens motors and operational parameters via built-in white radio
Interfaces
1x LEMO 5pin LTC Timecode In/Out
1x LEMO 10pin Ethernet for remote control and service
1x BNC Sync In (optional activation through ARRI Service)
1x LEMO 7pin EXT multi purpose accessory interface w. RS pin and unregulated power output (outputs battery voltage)
1x LEMO 4pin LBUS (on lens mount) for lens motors, daisy chainable
1x USB 2.0 (for user setups, look files etc)
Wireless Interfaces
Built-in WiFi module (IEEE 802.11b/g)
Built-in White Radio for ARRI lens and camera remote control
Lens Mounts
Titanium PL lens mount with LBUS connector
ARRI LPL Mount (LBUS)
PL lens mount with Hirose connector
ARRI EF Mount (LBUS)
EF lens mount
B4 lens mount with Hirose connector
Leitz M mount (availbale from Leitz)
Flange Focal Depth
PL mount: 52 mm
LPL mount: 44 mm
Power Input
1x LEMO 8pin (10.5-34 V DC)
Power Consumption
min. 43W
max. 84W
(Camera body with MVF-1)
Power Outputs
1x LEMO 7pin EXT unregulated power output (outputs battery voltage) with max. 1.1 A
Power Management
–
Measurements (HxWxL)
140 x 125 x 185 mm / 5.5 x 4.9 x 7.3″
(camera body with PL lens mount)
Operating Temperature
-20° C to +45° C / -4° F to +113° F @ 95% relative humidity max, non condensing, splash and dust proof through sealed electronics
Storage Temperature
-30° C to +70° C / -22° F to +158° F
Sound Level
< 20 dB(A) at 24fps
Software Licenses
ALEXA Mini 4:3 License Key
ALEXA Mini ARRIRAW License Key
ARRI Look Library License Key
